Mahle Motorsport 3S-GTE Piston Set

£585.00 ex. VAT £702.00 inc. VAT

SKU: mahle3sgte Categories: ,

Description

The Mahle PowerPak 86.5mm pistons are a complete, race proven piston assembly kit. It is composed of hand deburred, forged, performance coated pistons, high quality steel pins, round wire locks and low drag performance rings. Performance coatings include a phosphate dry lubricant that is used to protect against ring micro-welding and pin galling during initial startup and break in. For added performance, MAHLE applies its proprietary Grafel anti-friction coating to each piston skirt.


Piston Kit Features: Forged from 4032 high silicon low expansion aluminum alloy for high strength and reduced piston to wall clearance. Radiused valve pockets. Forced pin oiling. Precision pin fitting and easy to use round wire locks included. 22mm high quality German steel wrist pins (102 grams) INCLUDED. Precision ring grooves for INCLUDED 1.2, 1.2, 2.8mm rings.

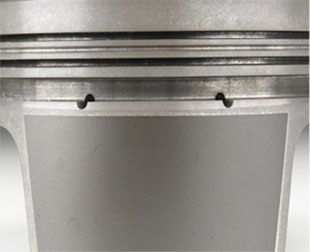

  • ULTRA FLAT RING GROOVES, THE KEY TO POWER. Every MAHLE Motorsport piston is machined to exacting tolerances with focused attention given to the radial flatness of the ring grooves. A flat ring groove is essential in achieving and maintaining the best seal possible. The quality of the ring grooves is so critical to peak and lasting performance, that MAHLE designed and built the machinery used to machine the ring grooves for its MotorSport piston assemblies. Combined with ultra flat MAHLE rings that are included in every PowerPak piston kit, MAHLE delivers the formula for the best sealing power cell on the market.
  • A TRUE PERFORMANCE COATING. MAHLE Motorsports’ proprietary Grafal® anti-friction skirt coating is like no other on the market. It is graphite impregnated to reduce drag like many other skirt coatings, but this is where the similarities end. The screen print application provides superior adhesion and is designed to last 100,000+ miles. Because Grafal® is a compressible membrane with a unique cushioning property, harsh contact between the piston skirt and the bore is dramatically reduced. Resulting in much less wear on the bore and significantly reduces piston skirt fatigue.
  • MAHLE Motorsport, creators of the “Slipper Skirt” forging design, uses strong, lightweight, low drag forgings in every PowerPak piston kit. Not all piston manufacturers can make that claim. A Slipper Skirt forging offers many benefits over the standard “Full Round” design, but the technology runs much deeper than looks alone. These benefits are only achieved through the proper management of the design; any misapplication can result in a similar looking part with poor performance. Trust the leader in piston technology, MAHLE Motorsport.

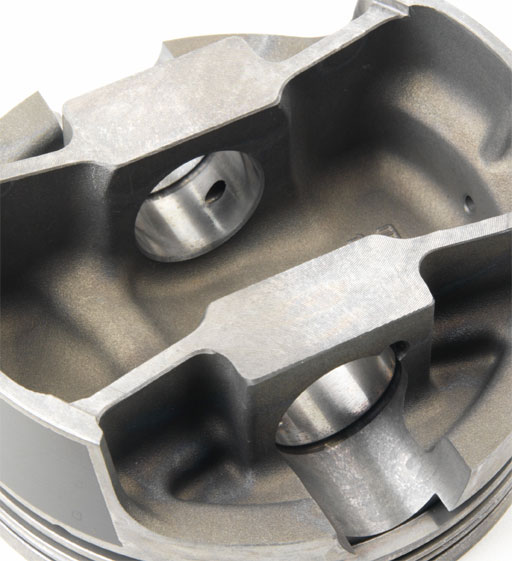

  • PIN BORES CNC MACHINED FOR UNMATCHED PERFORMANCE. Piston failures can often be traced back to poor and inconsistent pin bore quality or design. The pin bores on every MAHLE Motorsport piston are finishmachined using CNC equipment specially designed andmanufactured by MAHLE to precisely control shape, size and alignment. This added control allows for advanced designs and flexibility, resulting in unmatched consistency andperformance. MAHLE manages every small detail with the type of precision and expertise you would expect from the world’s piston technology leader.









Additional information

Weight 6.0000 kg
Brand

Manufacturer Name

Sort Weight
