Powerhouse Racing Triple Ti Automotive 450 Fuel Pump Hanger

Description

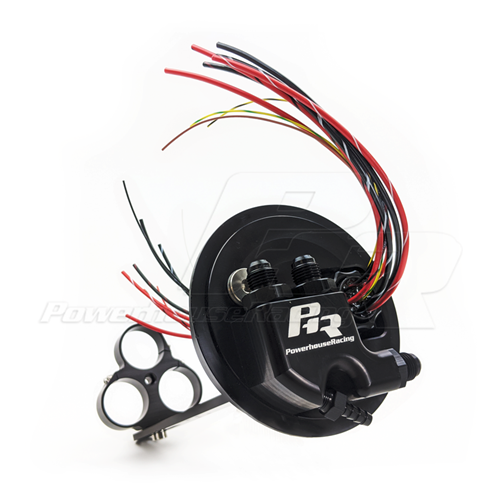

PHR Triple Walbro 450/485 fuel pump hanger for the Supra JZA80.

With a Flow Rating of over 800 lph or 267 Gallons per hour at 90psi, this pump setup is good for over 1900hp on Race Gas or 1400hp on E85!!!

Use this hanger to install 1, 2 or three fuel pumps. Compatible with the Walbro 255, Walbro 450, Walbro 525 or equivalent fuel pumps.

This triple pump hanger features:
CNC machined 6061 aluminum construction
Exact fit to the OEM tank
All applicable hardware
Proprietary sealed circular connectors potted with E85-safe epoxy
All PHR Hangers use Mil-Spec M22759/16 Tefzel wire.
Pumps can be triggered individually in staged sequence (and should be).
Anodized black! This will ensure our hangers can be used permanently in alcohol / methanol / E85 fuels with no concerns of long term corrosion.
Teflon Hoses, fully compatible with any fuel type.

The hanger will come standard with a single -8AN outlet, and a -6AN return fitting. There are two outlet ports for those who are wanting to run dual feed lines, one of which will come with a plug in it. You can add additional fittings below for running different line configurations and sizes.
