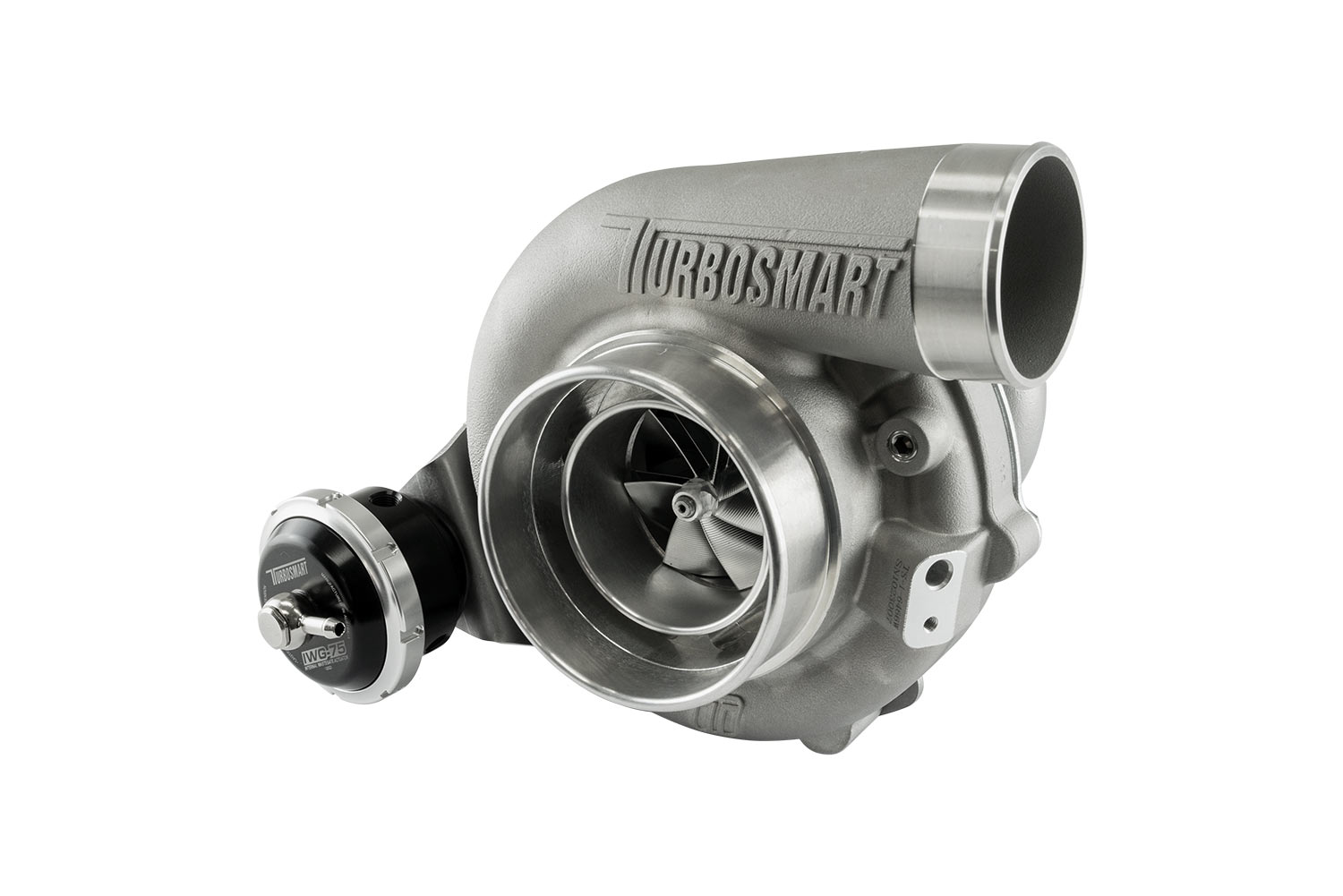

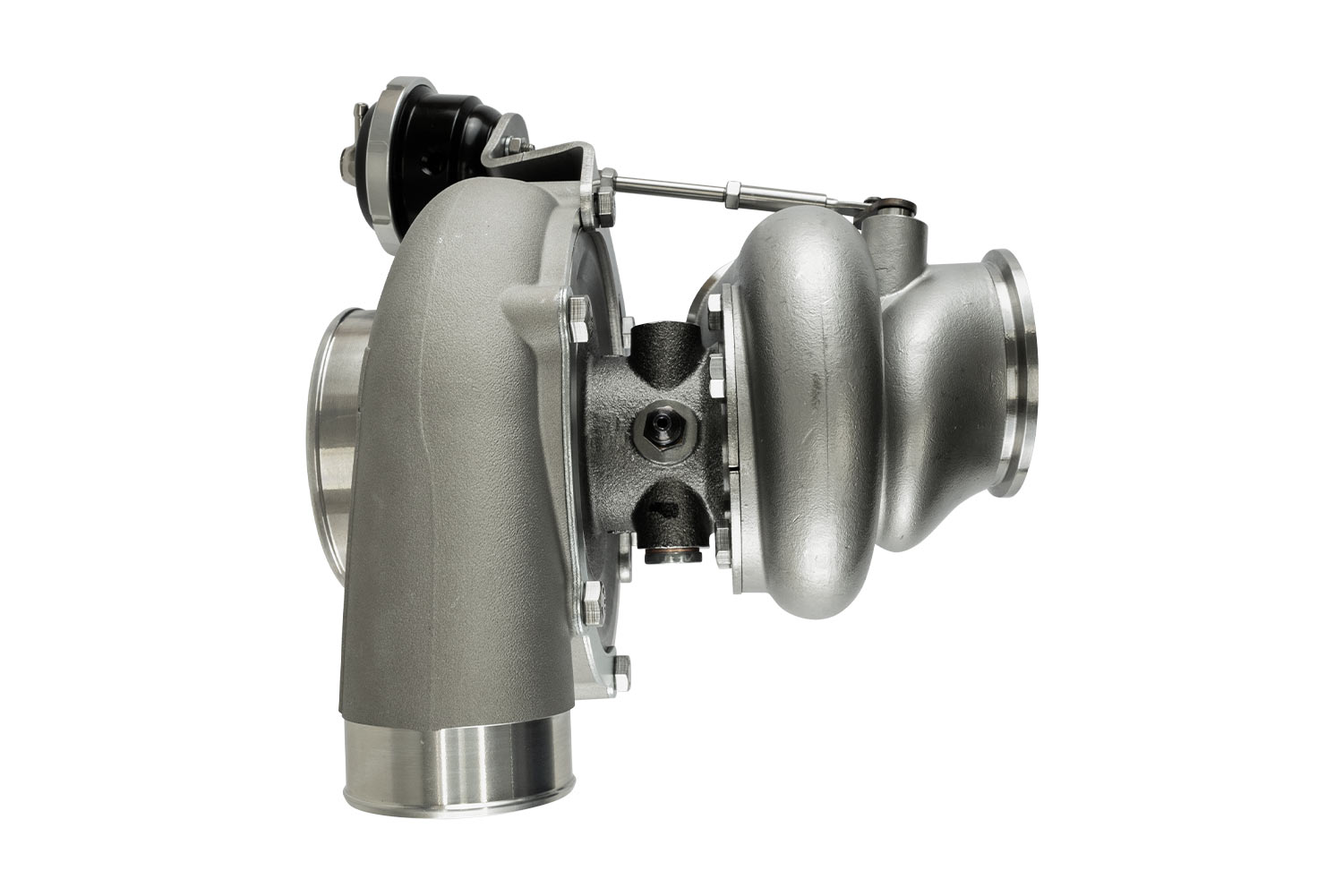

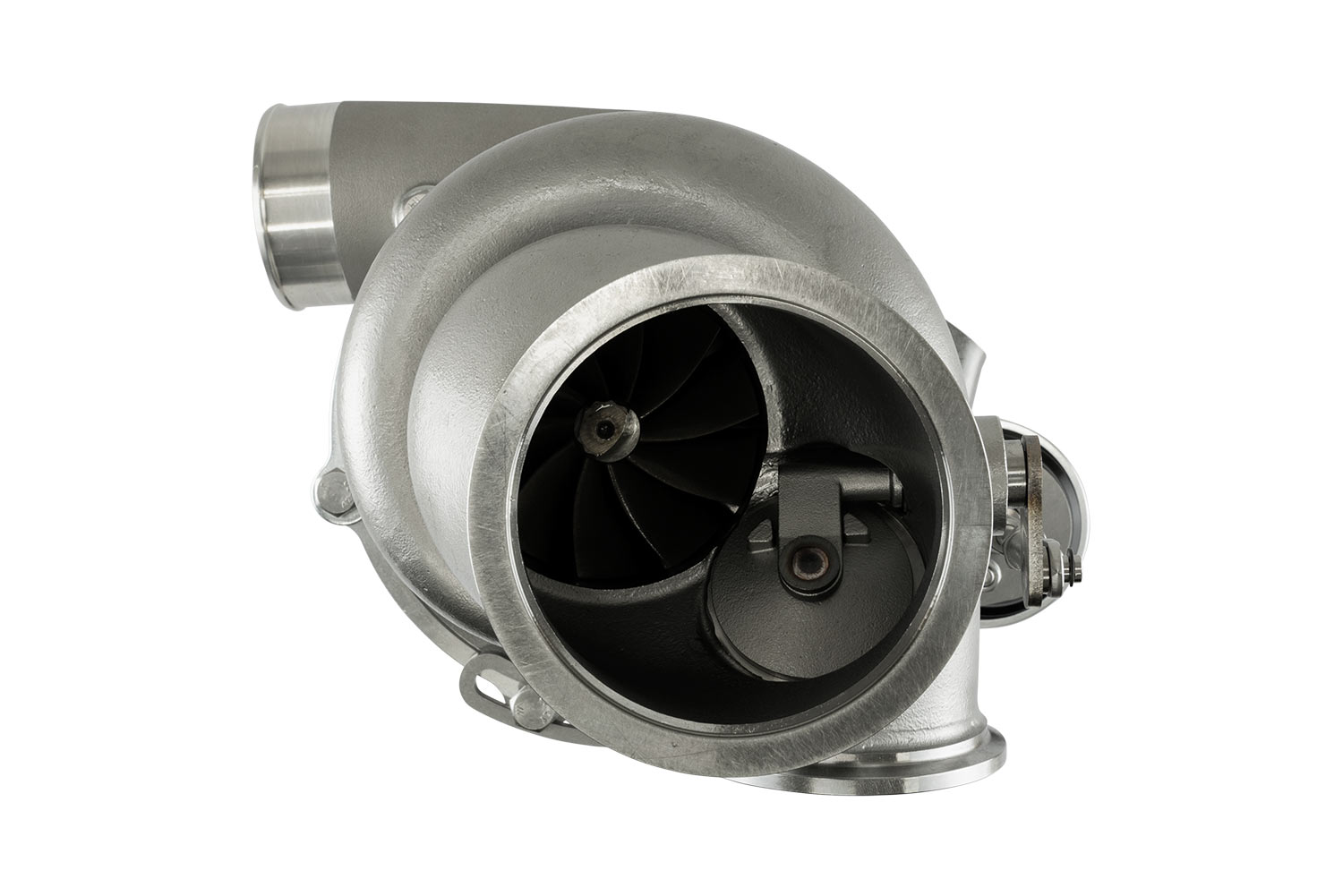

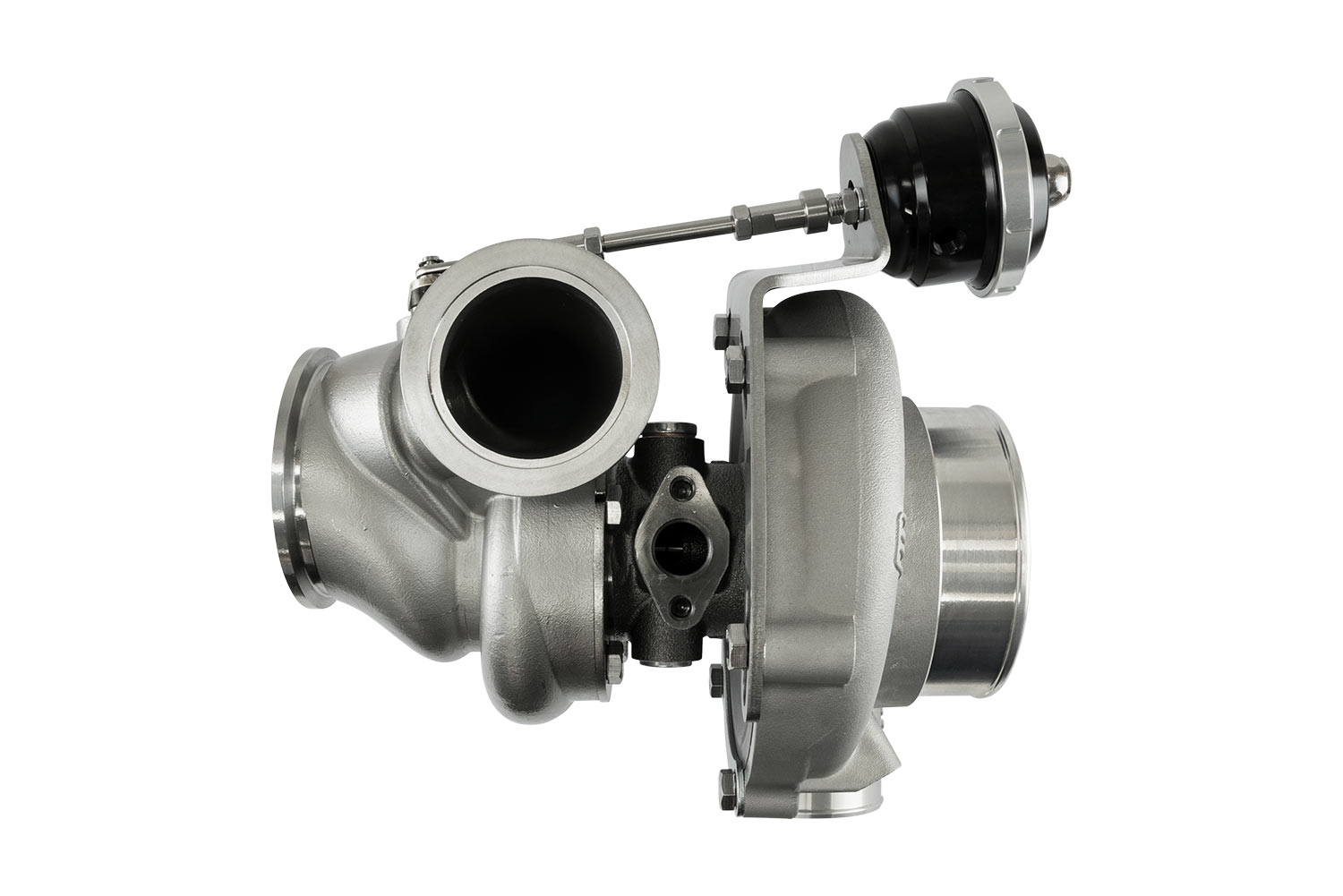

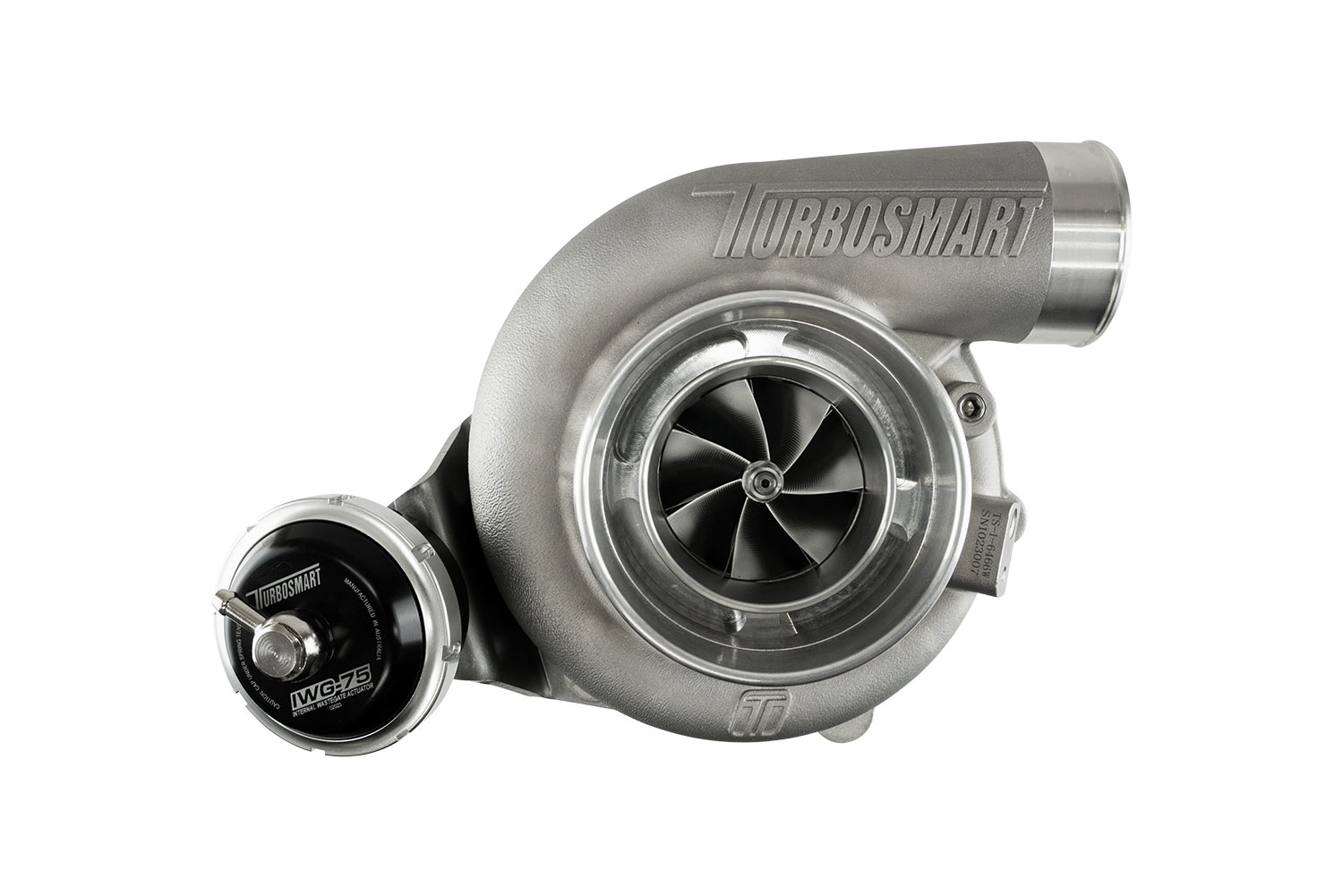

TS-2 Turbocharger (Water Cooled) 6262 V-Band 0.82AR Internally Wastegated

£1,612.46 ex. VAT £1,934.95 inc. VAT

Includes turbine inlet and outlet weld flanges and v-band clamps
Fitment Requires Fabrication // Universal Product

SKU: TS-2-6262B-VB082I Categories: ,

Description

Smaller, Lighter & Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

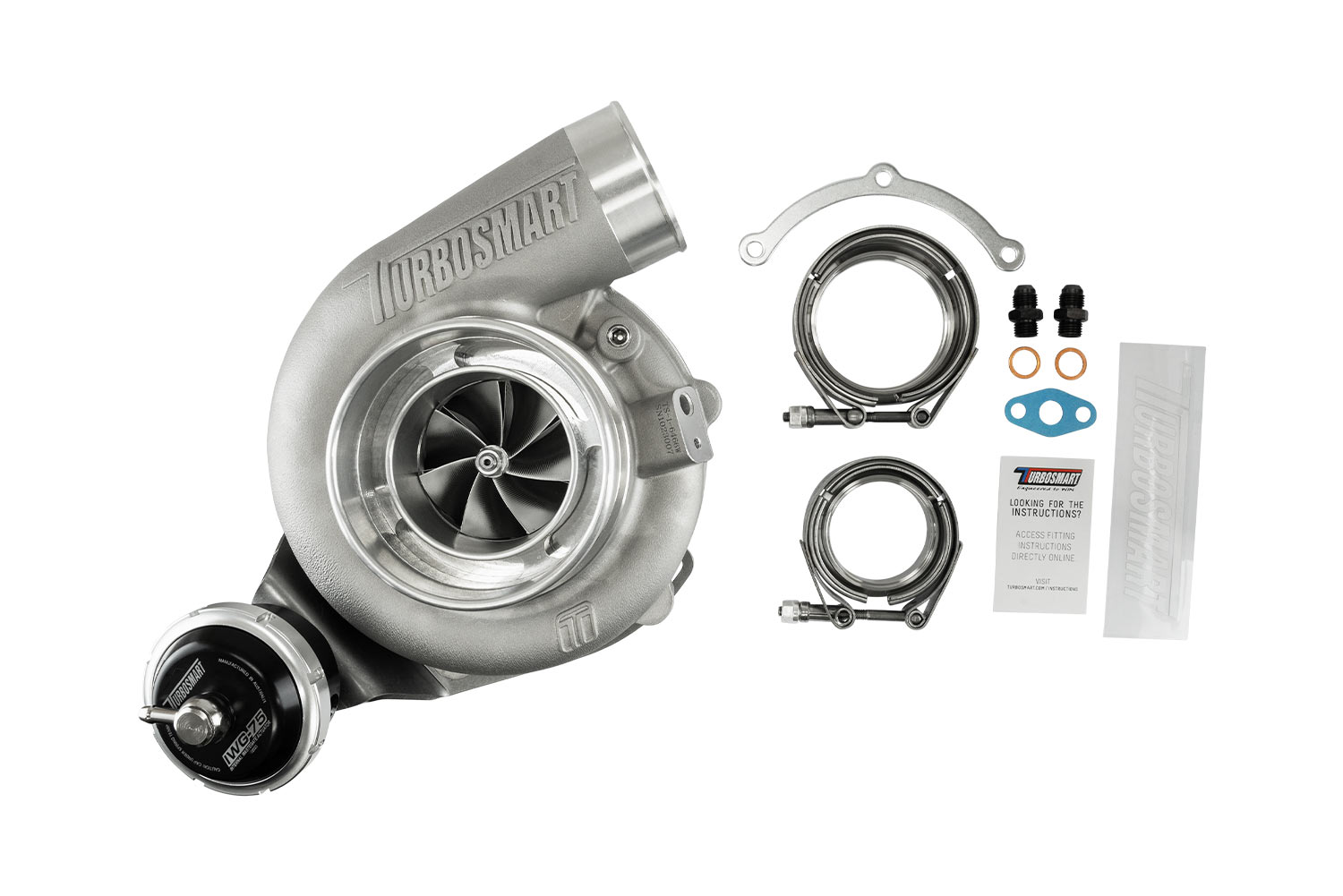

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-2 series are water and oil cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

Available In

TS-1 oil cooled turbochargers

TS-2 oil and water cooled turbochargers

V-Band, various T3 Flange and T4 Flange options

Reverse rotation (Selected Sizes)

Various A/R options

Internal and external wastegated options available

Features

Unparalleled transient response

Aggressive aerodynamics with 7+7 splitter wheels

Lightweight 310s stainless steel investment cast turbine housings

Lightweight, Aluminium compressor covers

CFD driven designed housings for optimal A/R’s and flow

T14 Inconel turbine wheel for extreme EGT’s

VSR speed balanced

Proprietary dual ceramic bearing system

Integrated Iron backplate on center housing

Specifications

Compressor Inlet: 4″ / 101.6mm

Compressor Inducer: 62mm

Turbine Inlet: V-Band (2.25″)

Turbine Exducer: 62mm

Turbine AR: 0.82

Turbine Outlet: V-Band (3.00″)

Weight: 6.06kg / 13.3lbs

Horsepower Rating: 650-800HP

Additional information

Dimensions 30 × 27 × 31 cm
