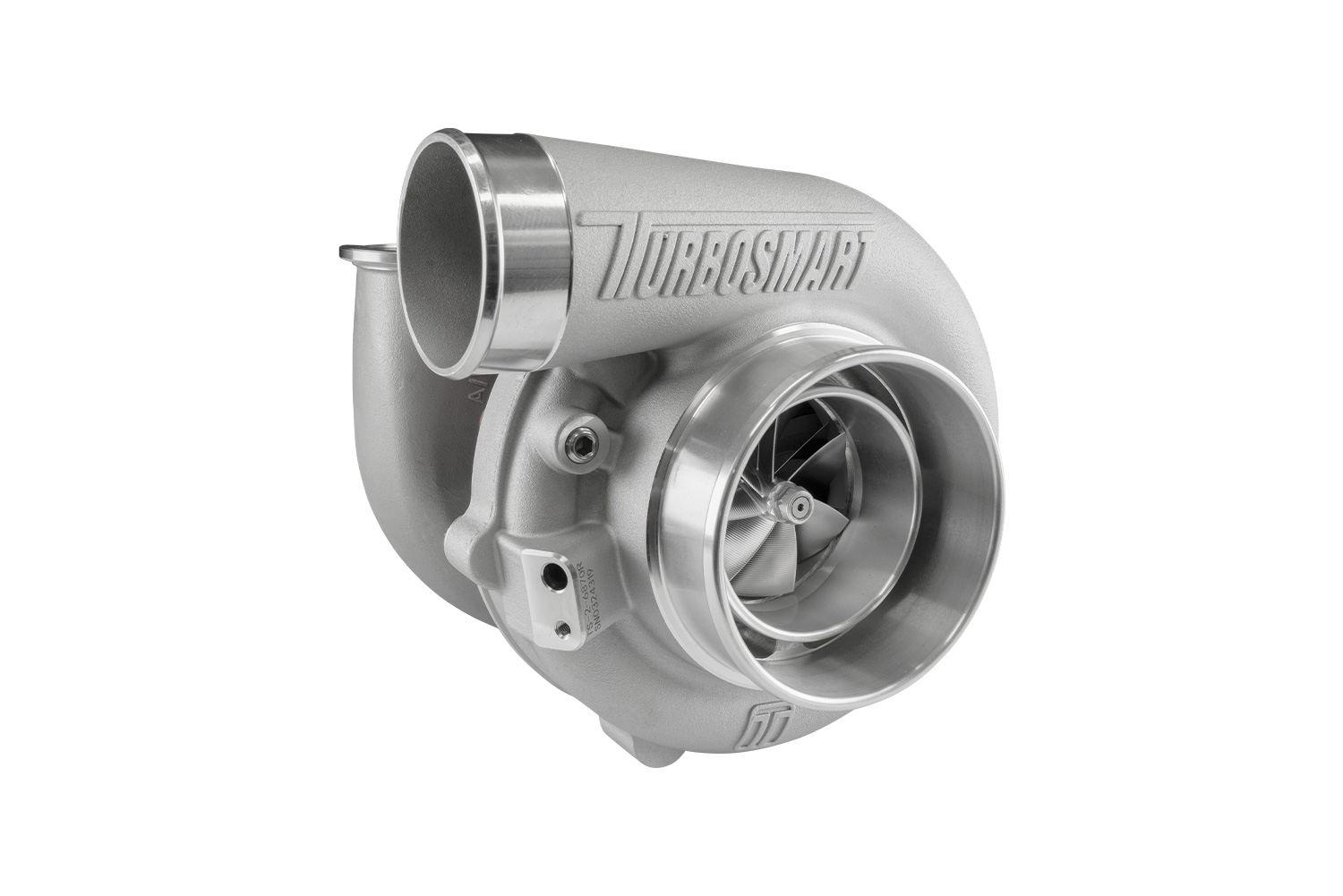

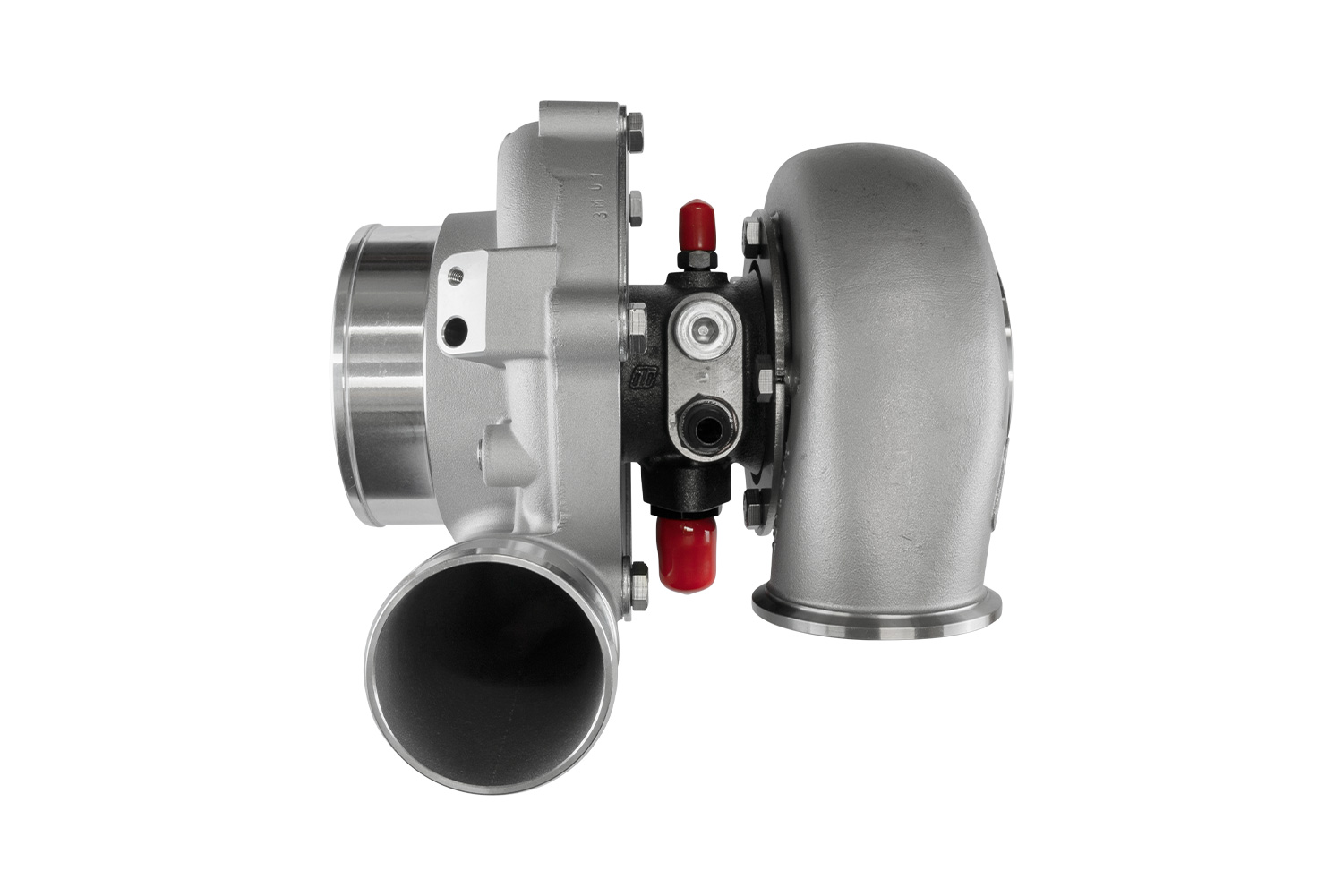

Turbosmart TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated

Description

Smaller, Lighter and Faster – The Turbosmart TS-2 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both motorsport, and performance enthusiasts alike.

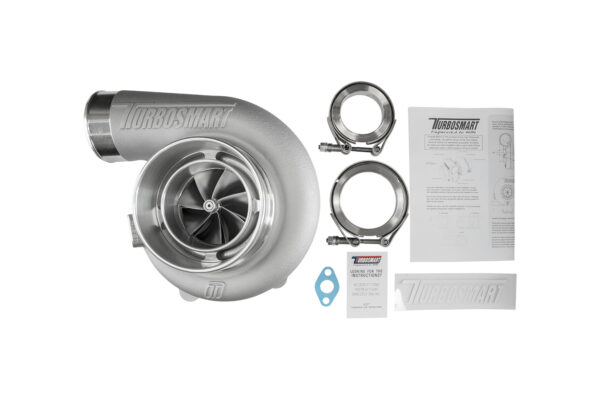

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-2 series is water and oil-cooled turbochargers with lightweight Investment cast turbine housings, a proprietary bearing and a central shaft combination that will provide the transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds, which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

The TS-2 turbocharger series has taken an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines – While being smaller, lighter and faster in response than other solutions on the market.

Available In
TS-1 oil-cooled turbochargers
TS-2 oil and water-cooled turbochargers
V-Band, various T3 Flange and T4 Flange options
Reverse rotation (Selected Sizes)
Various A/R options
Internal and external wastegate options are available


Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD-driven designed housings for optimal A/R’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing


Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 68mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 70mm
Turbine AR: 1.07
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs

Horsepower Rating: 850-990HP
