Description

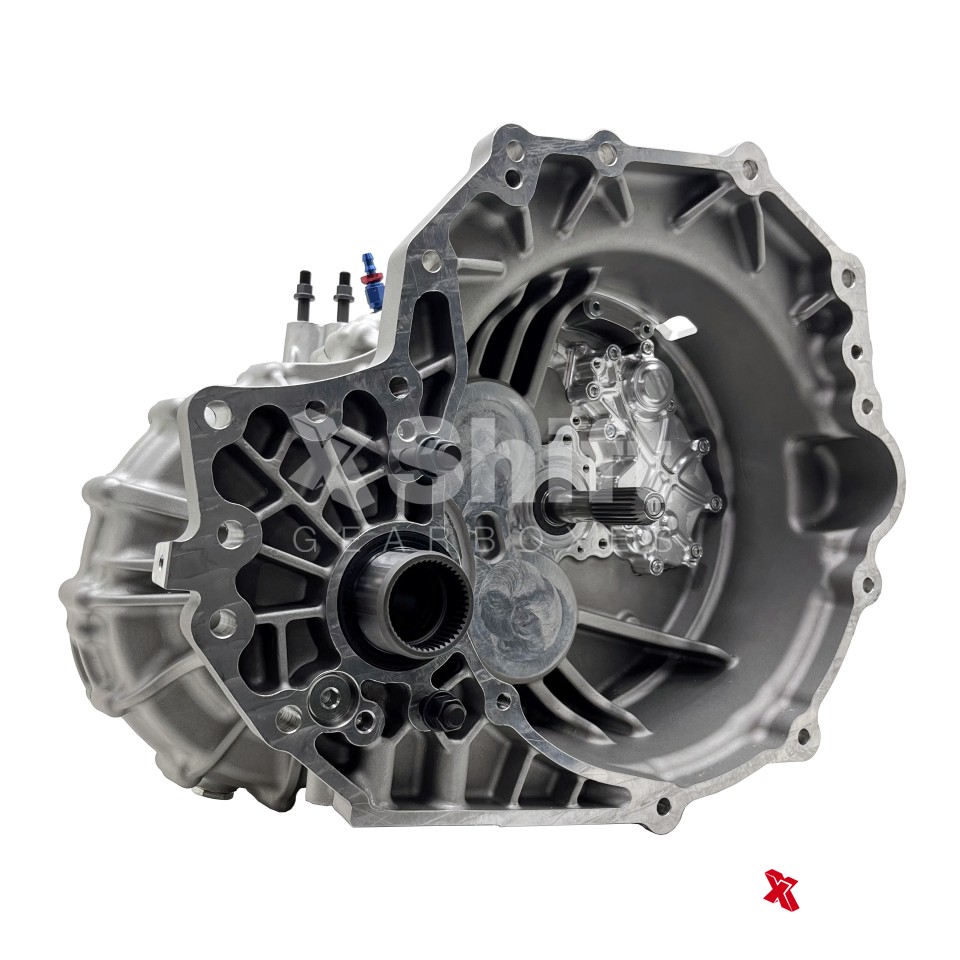

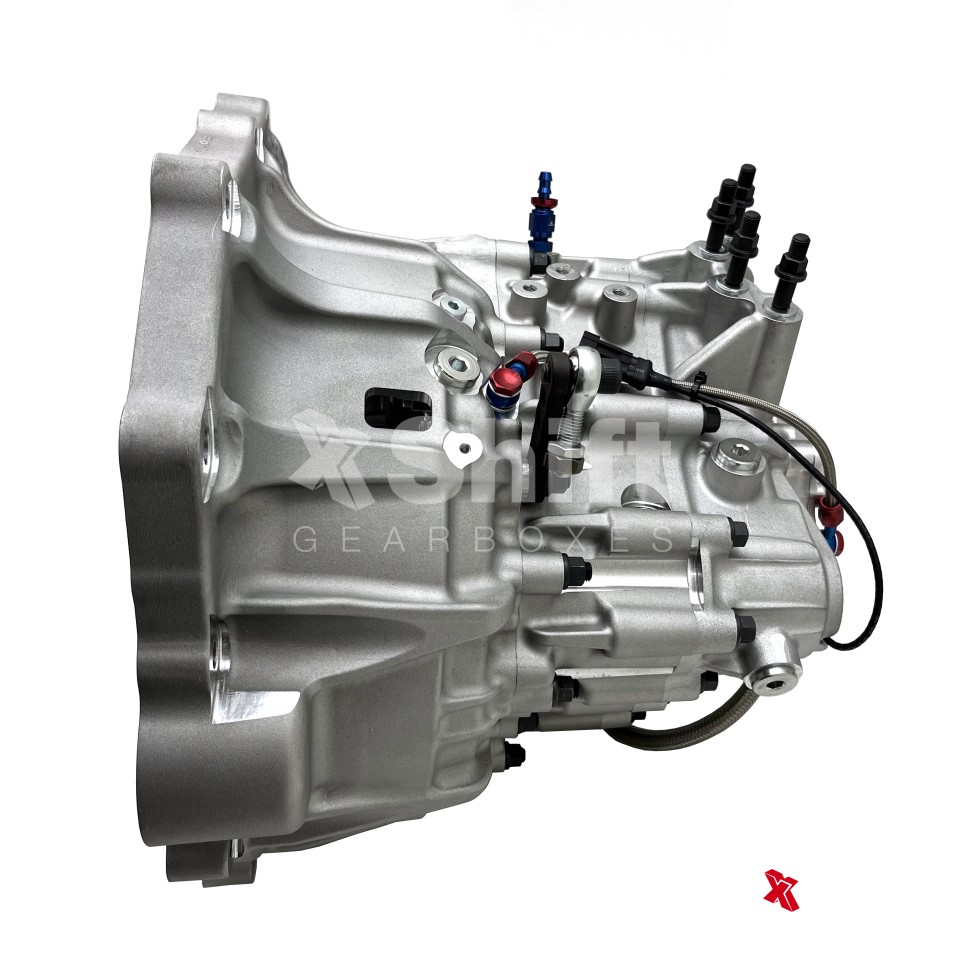

XShift Toyota GR Yaris & GR Corolla Sequential Gearbox, available in 5,6 or 7 speed options, please email us for prices and options.

Specification:

Latest shifting mechanism & dog engagement system
5/6 or 7 speed ratios
Cast gearbox casing rated to 1400NM torque
Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2…
Option for cooling the transfer case
Position for original oil temp sensor
Gear position sensor included

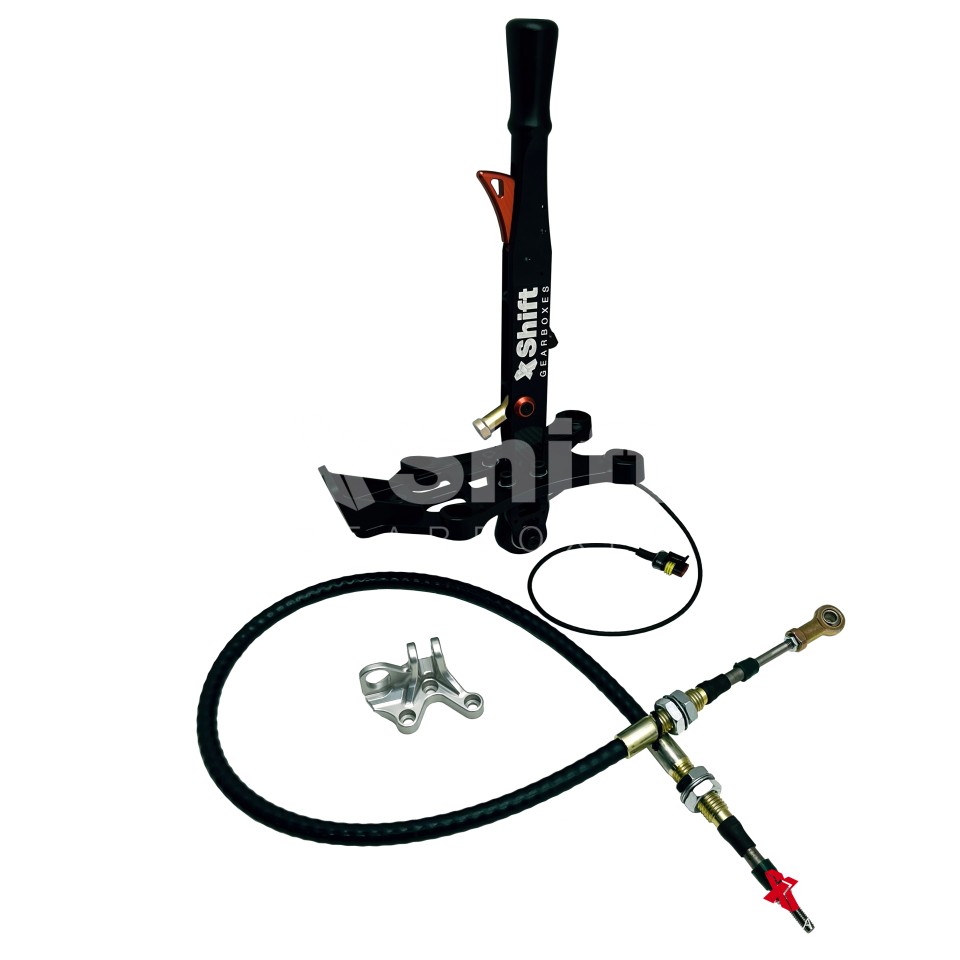

Shifting rod or cable in neat interior design

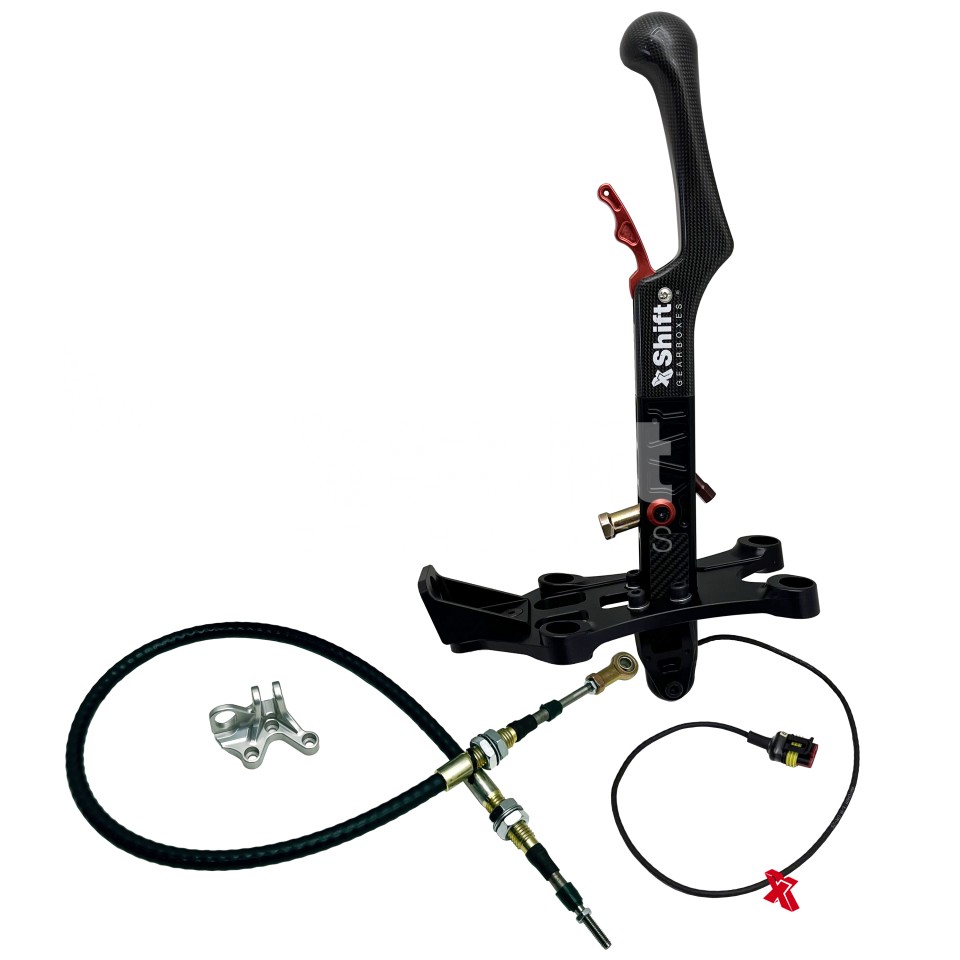

Aluminium or carbon shift lever
Limited slip diff with external adjustable preload
Integrated oil pump for better lubrication and lifespan
Bellhousing in unique design included
60kg weight

All parts are made from billet steel, applied special heat treatment and REM isotropic superfinished to ensure strength and high levels of abrasion resistance.

The GR Yaris has insufficient lubrication to the transfer case, this was one of the main improvements that was needed, here at Xshift gearboxes we developed a solution that uses a powerful gearbox lubrication pump which provides an oil supply to the transfer case increasing durability and lifespan.
