Garage Whifbitz Supra Turbo Kit – Garrett GTX

Description

Garage Whifbitz T4 twin wastegate twin scroll single turbo kit for the Supra JZA80 2JZ-GTE.

This version of our turbo kit comes with the Garrett GTX turbo range, ranging from the GTX3582 up to the GTX4202. All of the GTX range feature a forged, fully machined compressor wheel, dual ball bearing, oil and water cooled CHRA and a ported shroud compressor housing to increase surge resistance.

• GTX3582 up to 750bhp approx
• GTX4088 up to 850bhp approx
• GTX4202 up to 1200bhp approx

We believe this is the only twin wastegate turbo kit available in the world and also one of the best quality most complete kits on the market today. We’ve personally tested our kits on both of our Time Attack cars and results were sensational along with 100% reliability in the harshest of tests, on the race track where they are tested to destruction.

We also dyno tested our manifold design against the HKS single wastegate manifold and we gained around 800rpm spool up, which is a huge gain that you really feel on the road or track. This is due to the true divided twin scroll design of our manifold, creating faster spool up over a single wastegate version. Our manifolds also come with a billet collector for maximum flow and resistance to cracking.

The kits have been fitted to many customer cars and again the results were stunning. Our kits are used on many cars worldwide proving themselves time and time again, used by ourselves on our Time Attack cars now producing over 1300bhp, Sats Motorsport BDC drift car, Jamie P’s old 1200+bhp car and countless others. We’ve never had a warranty claim, never had a failure, never had a complaint.

As well as the turbo the kit comprises of the following items:

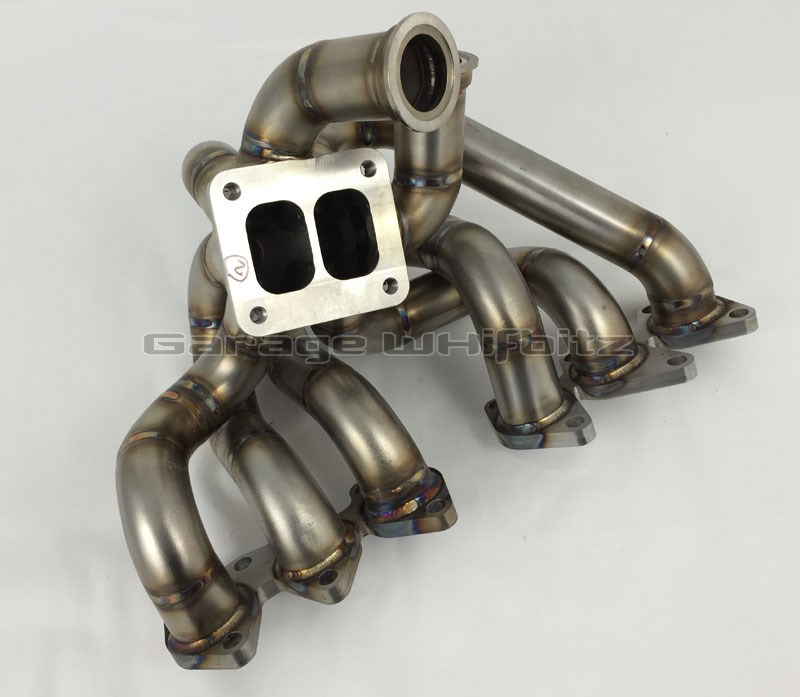

• Garage Whifbitz T4 stainless steel twin wastegate, twin scroll exhaust manifold, made in the UK to our own spec and comes with a 5 year anti crack (subject to usage) warranty from point of sale. Spec as follows: T4 turbo flange, 4mm walled 304 stainless steel construction, billet stainless steel collector, triple pass welded and back purged for seamless internal welds, we believe this is one of the highest quality manifolds available in the world. We’ve never had one crack or replaced under warranty.
• 2x Turbosmart Compgate 40mm external wastegates, external wastegates are routed back into the downpipe for quietness.
• 3″ V band stainless steel downpipe and midpipe, downpipe comes fitted with O2 bung for wideband sensor. 4″ DP optional and adviseable if you are going above 700bhp.
• Goodridge braided oil feed line with aluminium fittings, Whifbitz billet alluminium oil drain flanges with braided hose and fittings. Goodridge water lines/fittings.
• 4″ polished alloy intake pipe, 4″ K&N air filter and K&N idle valve filter. 5″ intake and filter on the GTX42 size.
• 3″ aluminium intercooler pipes to connect to the turbo, along with silicon hoses & jubilee clips required.
• HKS rubber caps to block off water feed for the stock turbos on the top hose elbow
• Optional extras include ceramic heat coated manifold, turbo blanket and polished turbo housing for that show car under bonnet look.

If you would like a price for fitting please contact us by telephone or email.
