Radium GR Corolla/Yaris, G16E-GTS Fuel Rail

Description

Radium Engineering Toyota GR Yaris and GR Corolla Fuel rail Manufactured with 0.6″ large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4″-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16″-18 threaded (6AN ORB).

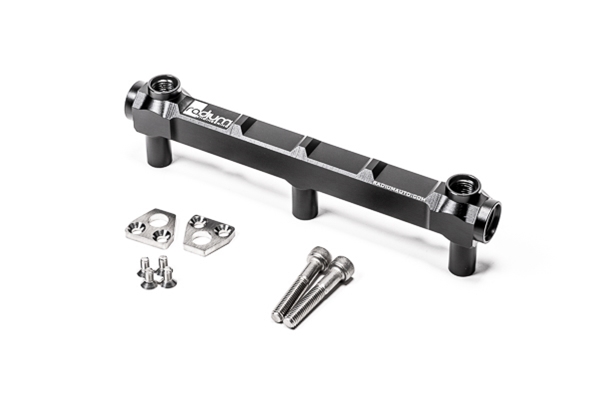

Stainless steel mounting tabs (shown) are included for superior strength.

FUEL INJECTORS
The OEM fuel injectors are compatible with these fuel rails. The machined ports are compatible with 11mm upper injector O-rings, as shown below.

Because of the tight clearance, the injector electrical connector can be tricky for aftermarket injectors.

FEATURES
-Anodized surface finish for wear and corrosion resistance
-Lightweight aluminium construction
-Inner bore diameter: 0.6 inch
-Can be converted to a pressure regulated return system
-No special tools required for installation
-Fits under the factory engine cover

20-0766 only includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system.
