Scott’s 800BHP Toyota Supra Mk4 ZF 8 Speed

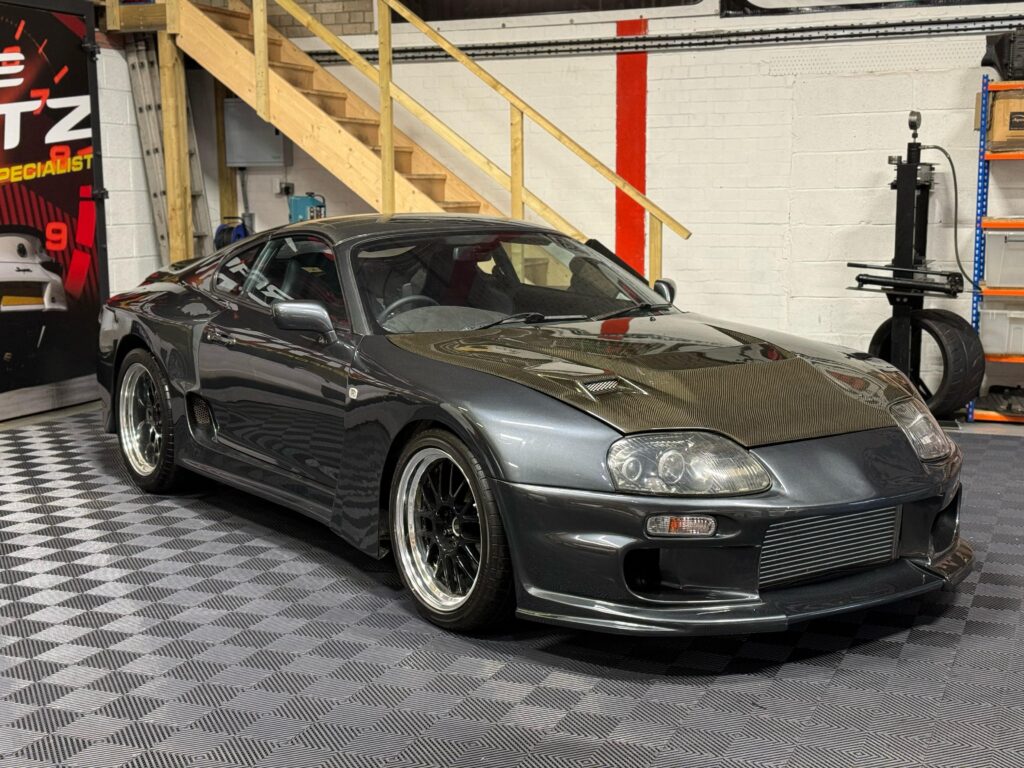

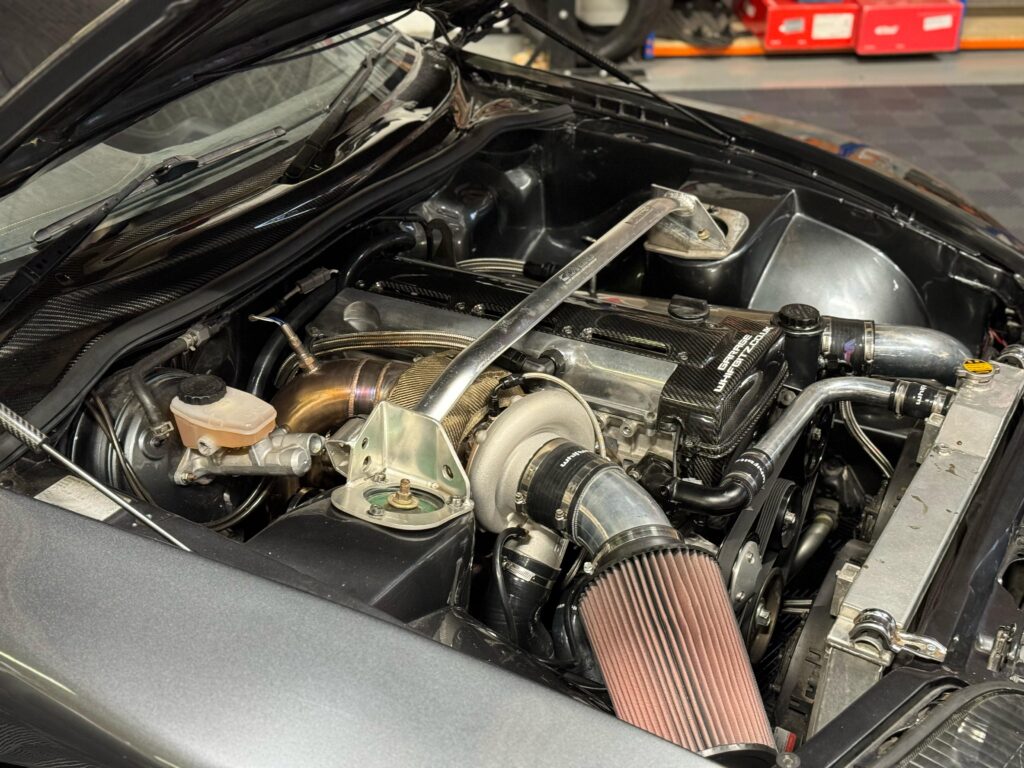

This is one of the wildest looking Toyota Supra Mk4’s we’ve ever done! Its wide arch body kit features 345 section tyres on the massive rear wheels, fully smoothed off engine bay with wire tuck, Whifbitz turbo kit and Alcantara suede interior.

Using our tried and tested ZF 8 speed gearbox conversion and with the engine pumping out 800bhp this Toyota Supra Mk4 will be one of the fastest around.

Just check out the spec of this car below, its endless.

Engine and ecu related parts

  • Toyota 2JZ-GTE forged engine
  • Mahle Motorsport 8.5:1 pistons
  • Carillo H beam conrods
  • ACL race bearings
  • Titan Motorsport L19 head stud kit
  • Toyota oil pump and head gasket
  • Full race 2JZ-GTE cylinder head with 1mm oversize valve, dual valve springs and CNC porting
  • Garage Whifbitz 269 camshafts
  • Garage Whifbitz adjustable cam pulleys
  • Gates Racing cambelt
  • Garage Whifbitz billet cambelt tensioner bracket
  • Garage Whifbitz single turbo kit featuring a Precision 6466 Next Gen turbo, Turbosmart Compgate 40 wastegates, 4″ downpipe/midpipe
  • Funk Motorsport titanium turbo blanket
  • Garage Whifbitz 4″ titanium single box exhaust
  • Garage Whifbitz R35 GTR coil pack conversion kit
  • Garage Whifbitz aluminium top radiator pipe
  • Hypertune drive by wire inlet manifold with 90mm Bosch drive by wire throttle
  • Hypertune billet fuel rail with FIC 1000cc injectors
  • 2x Walbro 450LPH fuel pump
  • Garage Whifbitz drive by wire throttle conversion
  • Syvecs S7plus ecu controlling the engine, NTK wideband lambda sensor, Titan Motorsport fuel pressure sensor, Titan Motorsport 3.5 bar map sensor, Bosch knock sensor, GM IAT sensor
  • Toucan dash display
  • Custom engine wiring loom
  • Garage Whifbitz 5″ intercooler
  • Garage Whifbitz billet engine pulleys
  • Powerhouse Racing battery relocation kit
  • Aluminium radiator
  • 25 row engine oil cooler
  • Garage Whifbitz carbon fibre engine covers

Transmission & Diff

  • Garage Whifbitz ZF 8HP70 8 speed gearbox conversion
  • 25 row gearbox cooler
  • Turbolamik TCU controlling the ZF 8 speed gearbox conversion
  • 3.7 diff ratio
  • Genuine Toyota rear diff mounts

Suspension, Wheels & Brakes

  • Tein superstreet coilovers
  • Work wheels 10×19 and 13×19 with 345/30×19 tyres
  • AP Racing front brake kit
  • Goodridge braided brake lines
  • Motul 5.1 brake fluid

Body Kit & Styling

  • Do Luck front bumper
  • Top Secret wide arch kit
  • Trial rear bumper
  • Carbon bootlid
  • Carbon vented bonnet
  • Full Alcantara interior retrim
  • Cobra seats
  • Momo steering wheel
