Radium Port Injection Kit GR Supra A90/1

Description

20-0753 OVERVIEW

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head. It permits the use of port injectors for the additional fuel required for highly-modified B58TU engines. This does NOT replace the OEM direct injection system.

The fuel rail is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. Both end ports are machined with 8AN ORB (3/4-16 female) threads. For a list of all 8AN ORB adapter fittings, go HERE.

The injectors are mounted at a calculated angle to ensure proper spray into the center of the intake ports without sacrificing interference from surrounding components.

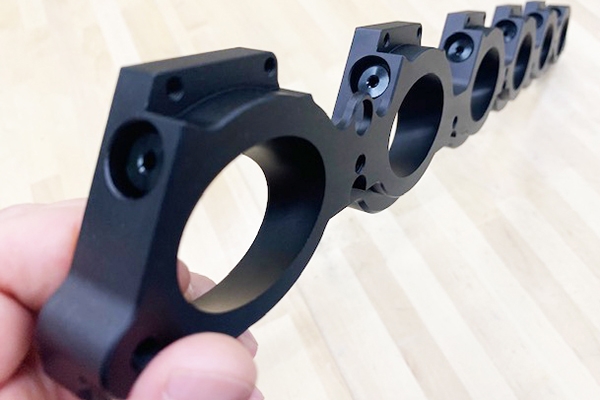

The PIK adapter plate can also be used as a simple intake manifold spacer without using the fuel rail. All that is required are 2AN ORB Plugs shown below.

Relocation hardware is provided to allow the OEM engine vanity cover to be reused.

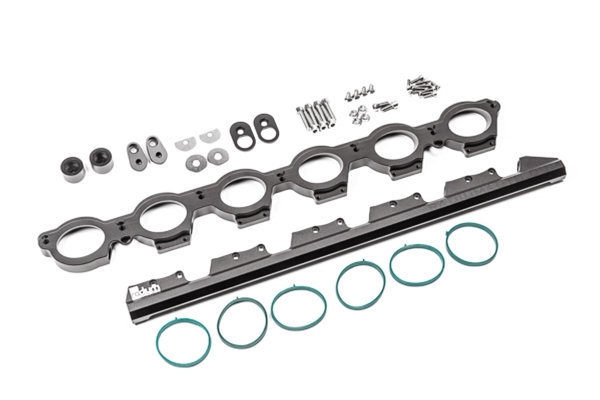

INCLUDED
-Anodized Aluminum PIK Adapter Plate
-Anodized Aluminum Fuel Rail
-Engine Cover Relocation Hardware
-B58TU Intake Port Gaskets (x6)
-Stainless Steel Hardware

VEHICLE COMPATIBILITY
2020+ Toyota GR Supra (A90/A91)
2018+ BMW Z4 (G29)

NOTES:
1. Compatible with the 2nd generation B58TU engines listed below.
-B58B30O1 (B58B30B)
-B58B30M1 (B58B30C)
2. NOT compatible with the 1st generation B58B30M0 (B58B30A) engine.

FUEL INJECTOR COMPATIBILITY
This kit is designed for specific top feed fuel injectors with upper and lower O-ring spacing, as depicted below. The upper and lower injector O-rings must be 14mm diameter.

Below are some of the many fuel injectors that are a direct fitment.

Injector Dynamics ID850-34-14-14
Injector Dynamics ID1050x-34-14-14
Injector Dynamics ID1300-34-14-14
Injector Dynamics ID1700-34-14-14
Injector Dynamics ID2000-34-14-14
Evolved Injection DPI550-38-14-14
Evolved Injection DPI650-38-14-14
Evolved Injection DPI850-38-14-14
Evolved Injection DPI1000-38-14-14
Evolved Injection DPI1200-38-14-14
Evolved Injection DPI1300-38-14-14
Evolved Injection DPI2200-38-14-14
Deatschwerks 16U-00-0042-4
Deatschwerks 16U-00-0050-4
Deatschwerks 16U-00-0065-4
Deatschwerks 16U-00-0090-4
Deatschwerks 16M-00-1500-4
Deatschwerks 16M-00-2200-4

NOTES
1. Fuel injectors, port fittings, fuel hose, wiring, injector controller, charge pipe, etc. are NOT included in 20-0735.
2. See the 20-0735-PK (below) for a plumbing kit that provides the necessary adapter fittings and hose to connect to the OEM fuel line.
3. For an independently regulated high horsepower port injection fuel pump system, click HERE.
4. Because the PIK will space the intake manifold off the head, an aftermarket charge pipe will be required for the throttle body connection.
5. Compatible with all fuel types including popular alcohol mixtures such as E85.

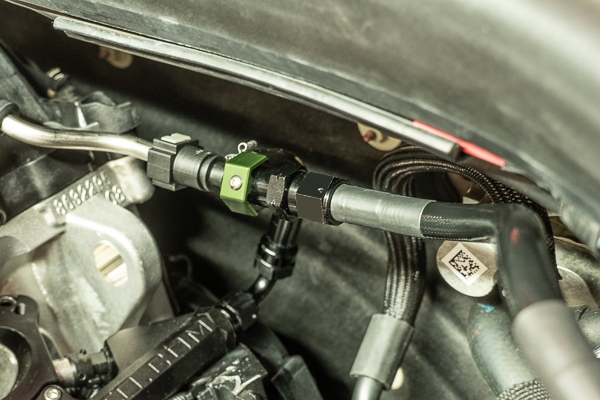

20-0753-PK FUEL RAIL PLUMBING KIT, MK5 SUPRA

This kit permits the OEM low pressure fuel feed hose to be connected to the rear of the port injection fuel rail. Installs in under 10 minutes. If using an independent port injection fuel system (see Radium 20-0760 fuel pump hanger), this plumbing kit would not be required.
